Container boiler house WKK02

Container boiler house WKK02

Lisaväli
ventilators
Lisaväli 2

Description

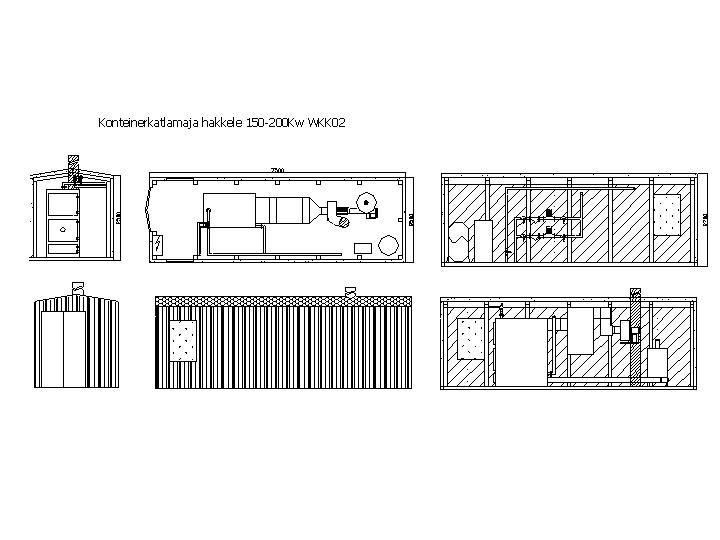

Container boiler house for wood chips and sawdust WKK02   150-200 kW

Dimensions of the container of the boiler house:    Width 2500    Length 7500    Height 2700
Chimney included in the set:    Length 7000
Boiler house capacity:  150kw-200kW
Moisture content of wood chips and sawdust:   10-45%
Boiler house heating intervals: 20%-100%
Max. energy consumption:  7,5kW
Real energy consumption when operating:  4,5kW
Max. temperature of outgoing water:  105C
Efficiency factor of the boiler house: 80%

Technical specification of the boiler house
Boiler:  Wetorex WET–200MG
Multi cyclone:   Wetorex MC-200
Flue-gas exhauster (control through a frequency converter): Wetorex SV-6 3,0kW
Additional air ventilator (control through a frequency converter):  Wetorex OV-1 1,1kW
Feeder hopper (control through a frequency converter):   Wetorex EM-1 1,1kW/0,55kW
Natural circulation pump: Wilo TOP S 30/7  0,2kW
Piping system pump: Wilo IL 50/160  0,75kW
Batcher:  Belimo DN 50
Valves:  Naval ja Oras
Firefighting systems:  Danfoss
Water softener:  1,0m3/h
Membrane expansion tank:   Elbi 150L
Fully automated control centre:  Wetorex KK-1AG
Container walls (colour as per customer’s preferences):   Ruukki 100mm
All equipment is manufactured in EU countries.
