Description

Container boiler house for wood chips and sawdust WKK05   500 kW

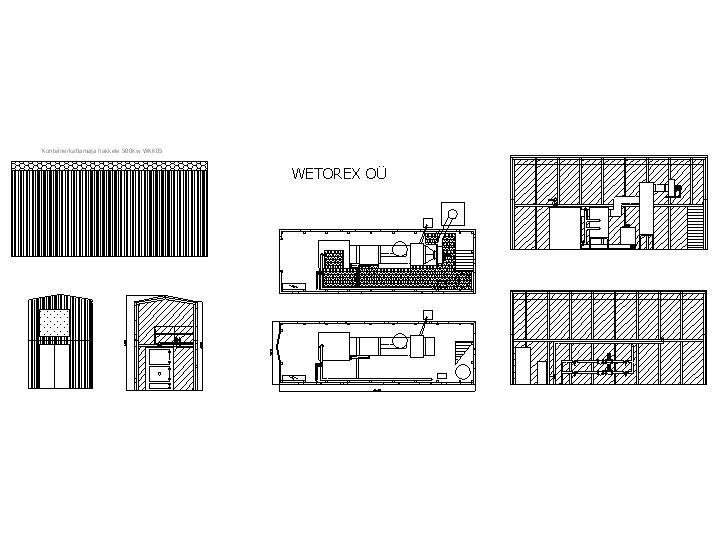

Dimensions of the container of the boiler house:    Width 3410    Length 10600    Height 5000
Chimney included in the set:    Length 9000
Boiler house capacity:  500kW
Moisture content of wood chips and sawdust:   10-50%
Boiler house heating intervals: 20%-100%
Max. energy consumption:  13kW
Real energy consumption when operating:  8kW
Max. temperature of outgoing water:  105C
Efficiency factor of the boiler house: 84%

Technical specification of the boiler house
Boiler:  Wetorex WET–500MG
Economiser: Wetorex EC-500
Multi cyclone: Wetorex MC-500
Flue-gas exhauster (control through a frequency converter): Wetorex SV-8.5  5,5kW
Additional air ventilator (control through a frequency converter):  Wetorex OV-2 1,5kW
Feeder hopper (control through a frequency converter):   Wetorex EM-1 1,5kW/0,75kW
Natural circulation pump: Wilo TOP S 50/7  0,625kW
Piping system pump: Wilo Z 25  0,55kW
Batcher:  Belimo DN 80
Valves:  Naval ja Oras
Firefighting systems:  Danfoss
Water softener:  1,0m3/h
Membrane expansion tank:   Elbi 500L
Fully automated control centre:  Wetorex KK-1AG
Container walls (colour as per customer’s preferences):   Ruukki 100mm
All equipment is manufactured in EU countries.
