Container boiler houses fired with wood chips and pile combustor boiler fired with sawdust

Back

Container boiler house WKK08

Container boiler house WKK08

Lisaväli
ventilators
Lisaväli 2

Description

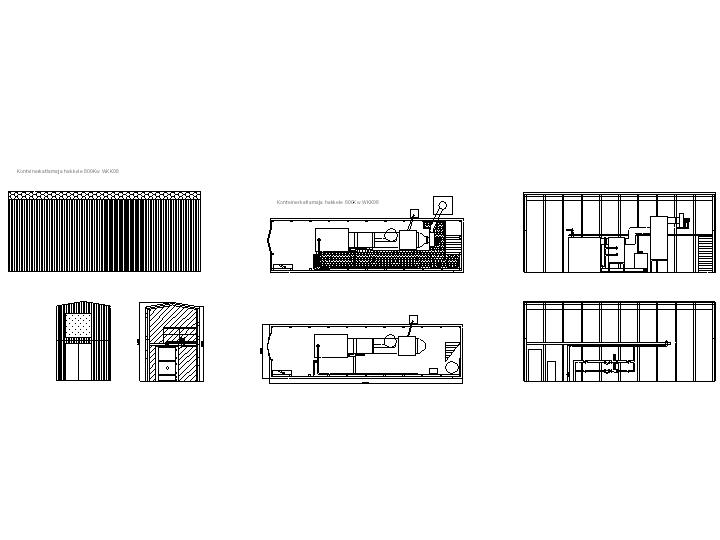

Container boiler house for wood chips and sawdust WKK08   800 kW

Dimensions of the container of the boiler house:    Width 3410    Length 12300    Height 5100
Chimney included in the set:    Length 9000
Boiler house capacity:  800kW
Moisture content of wood chips and sawdust:   10-50%
Boiler house heating intervals: 20%-100%
Max. energy consumption:  15kW
Real energy consumption when operating:  10kW
Max. temperature of outgoing water:  105C
Efficiency factor of the boiler house: 86%

Technical specification of the boiler house
Boiler:  Wetorex WET–800MG
Economiser: Wetorex EC-1000
Multi cyclone: Wetorex MC-1000
Flue-gas exhauster (control through a frequency converter): Wetorex SV-8.5  5,5kW
Additional air ventilator (control through a frequency converter):  Wetorex OV-1 1,1kW
Additional air ventilator (control through a frequency converter):  Wetorex OV-2 1,5kW
Feeder hopper (control through a frequency converter):   Wetorex EM-2 1,5kW/0,75kW
Natural circulation pump: Wilo TOP S 50/10  0,88kW
Piping system pump:  Wilo IL 80/160 1,5kW
Additional water pump: Wilo MVI 102  0,45kW
Batcher:  Belimo DN 80
Valves:  Naval ja Oras
Firefighting systems:  Danfoss
Water softener:  1,0m3/h
Membrane expansion tank:   Elbi 500L
Fully automated control centre:  Wetorex KK-1AG
Container walls (colour as per customer’s preferences):   Ruukki 100mm
All equipment is manufactured in EU countries.
